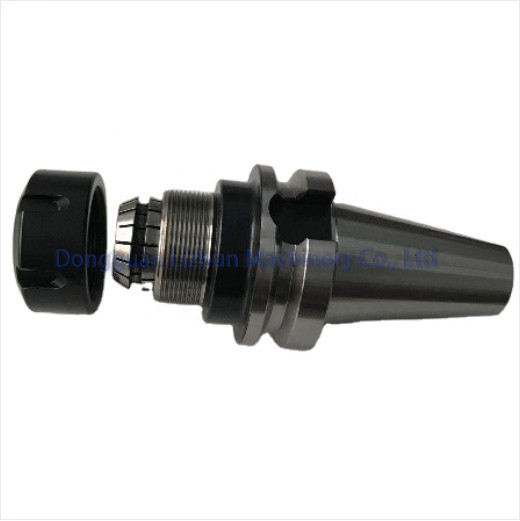

Suitable For Various Types CNC Milling Machine Tool Holder BT30/BT40-ER16-70
CNC Machine Tools Holder With spring collet chucks tool holders Using high-quality raw materials Integrated design of the rob and collet can avoid the collet and rob separate
1- High Accuracy, strong grasp force, and high stability.
2- Easy Broken parts are dealt with by quenching.
3- Self-tightening, grasp the collet slightly when drilling, grasp force is enhancing with the torque increasing and develop the drill remove.
4- ER, collet chucks handle a wide range of machining jobs without having to buy new tool holders.
5- Collets are available for drilling, milling, coolant thru, and high-speed applications.
6- AT3 class accuracy. 7- Inspection report included for accuracy and balance
8- Includes Collet Nut
Product parameters
| Model | Material |
| BT40 |
| BT40-ER16-70/100L | 20CrMnTi |
| BT40-ER20-70/100L | 20CrMnTi |
| BT40-ER25-70/100L | 20CrMnTi |
| BT40-ER32-70/100L | 20CrMnTi |
| BT40-GER16-70/100L | 20CrMnTi |
| BT40-GER20-70/100L | 20CrMnTi |
| BT40-GER25-70/100L | 20CrMnTi |
| BT40-GER32-70/100L | 20CrMnTi |
| BT40-DC6/08/12-90L | 20CrMnTi |
| BT40-DC6/08/12-120L | 20CrMnTi |
| BT40-DC6/08/12-150L | 20CrMnTi |
| BT40-ER16-70/100L | Stainless Stee |
| BT40-ER20-70/100L | Stainless Stee |
| BT40-ER25-70/100L | Stainless Stee |
| BT40-ER32-70/100L | Stainless Stee |
| BT40-GER16-70L | Stainless Stee |
| BT40-GER20-70/100L | Stainless Stee |
| BT40-GER25-70/100L | Stainless Stee |
| BT40-GER32-70/100L | Stainless Stee |
| BT40-SK10/16-60H | Stainless Stee |
| BT40-SK10/16-90H | Stainless Stee |
Detail drawing
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
